TM-007

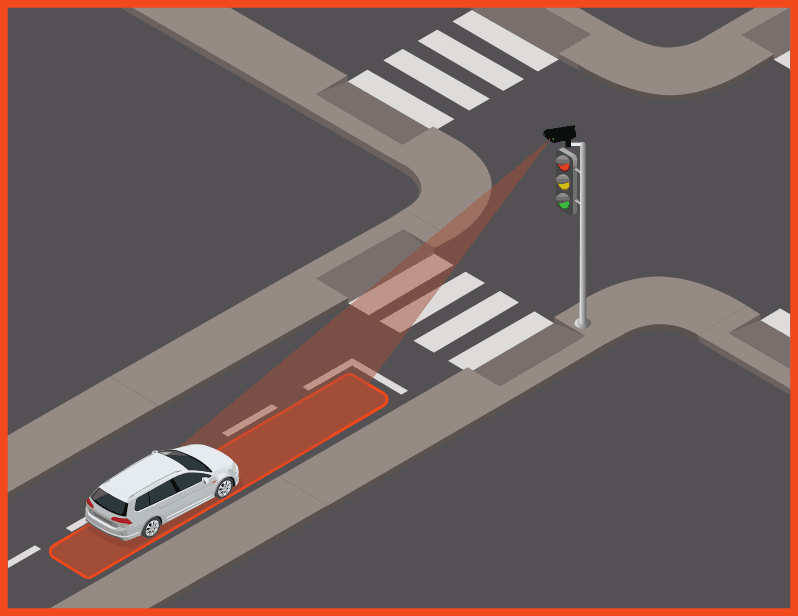

The TM-007 Doppler sensor is a multifunction model, equipped with two relay outputs. It is designed for vehicles detection at intersection, as well as for speed warning or clever lighting applications. It detects above or under the chosen speed threshold.
Compact and lightweight, it can be installed quickly, without civil engineering works or traffic stops.
Operation and strengths
- One relay for “all vehicles” detection
- One relay for “overspeeding” detection
- Detection above or under the chosen speed threshold
- Range > 100 m for cars, > 200 m for trucks
- Choice of power supply:
- 220 V
- 12-42 V AC/10-60 V DC
- Optional RS-232 communication
- Comfort of installation and use:
- above-ground installation
- works in all weathers
- maintenance-free
- trustworthy
- settings without opening the housing
Technical features
| Range (for a standard car, radar installed at a height of 4.5 m, angle of 5°, sensitivity ¾) | > 100 m (trucks: > 200m) |
| Min. detectable speed |
adjustable (relay 1: 4 or 8 km/h; relay 2: 16 possible positions from 10 to 120 km/h) |
| Detection direction |
incoming traffic |
| Detectable speeds |
from chosen threshold to 160 km/h |
| Dimensions low voltage |
70x100x115 mm |
| Dimensions 220 V | 70x100x180 mm |
| Weight (excl. cable and bracket) | 450 g (low voltage)/620 g (220 V) |
| Protection level |
IP65, EN 50102 (IK) |
| Mount | double-L (Included), adapted for M8 screws |
| Operating temperature range |
from -40°C to +75°C |
| Power supply |
LV Model: 10-42 V AC/12-60 V DC EU Model: 220 V AC |
| Power consumption |
< 1 VA |
| Frequency | K-Band: 24.125 GHz |
| Transmitting power |
5 mW |
| User outputs |
visible LED on the front panel – 2 relay contacts |
| Response time |
< 250 ms |
| Relays holding time |
1 sec. |
Use cases
- Traffic lights:
- call and/or phase extension
- coordination of hubs
- green wave
- green bonus
- sanction red
- Lighting of outdoor parking lots (stations) on vehicle movement detection
- Activation of signals:
- “approaching vehicles” for cyclists
- “dangerous turns” powered by solar energy, only when a vehicle approaches in order to achieve substantial energy savings
