I-SAFE 2

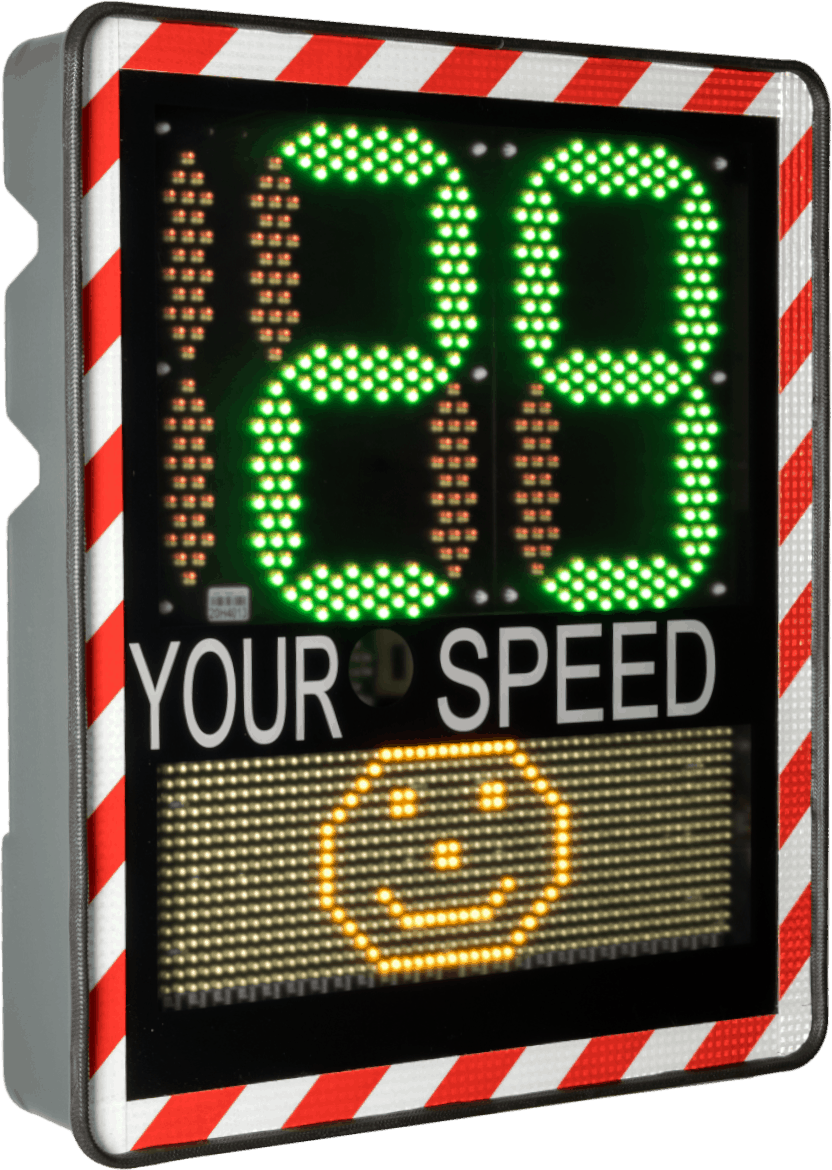

The I-SAFE 2 is a speed display that displays the speed together with text or picture messages.

It combines a “numbers” matrix with a full LED matrix to display texts or pictograms. A three-colors text matrix is available as an option.

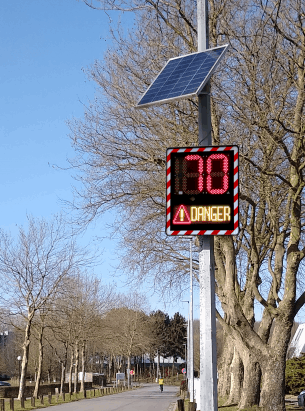

With its integrated radar and removable battery, it is mobile and easy to operate. It can also be equipped with a solar power supply kit or connected to public lighting.

Technical features

Use cases

Operation and strengths

Tricolour numbers: green, orange, red according to the speed measured

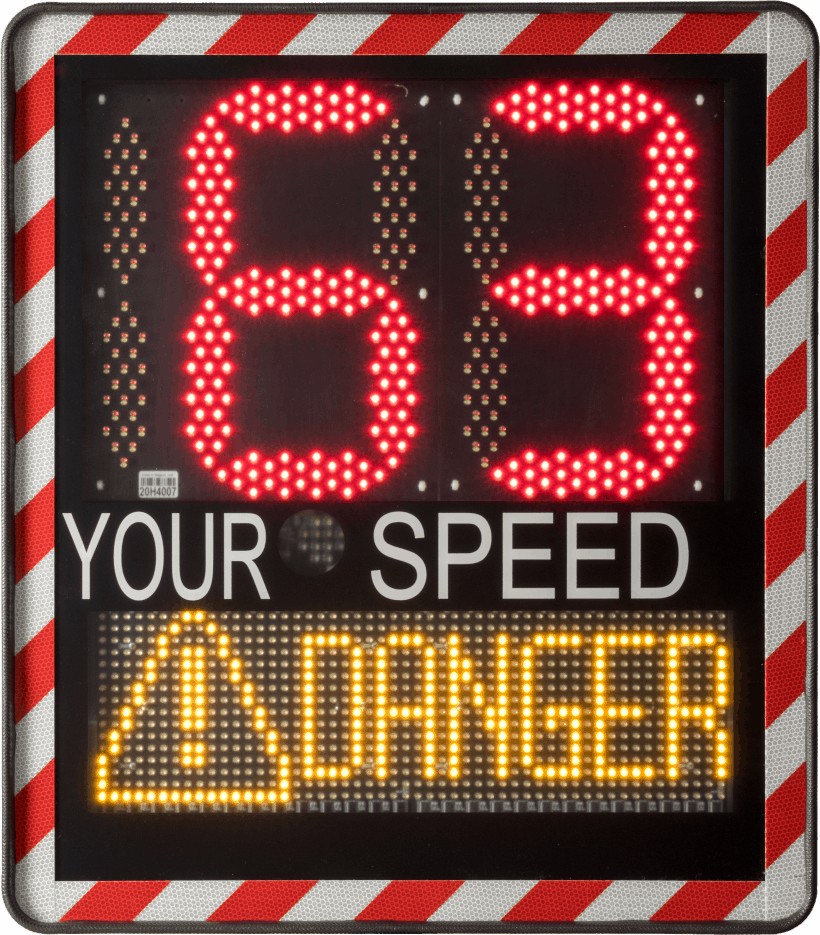

Successive display of three messages (two lines of text or pictograms), simultaneously with the speed
Three power supply options
Anti-record function
Complete basic kit including fixing material
Calendar function
Pre-programmed speed regimes
Customization of settings via USB key or Bluetooth (option)
User-friendly software for managing measurement data

OPTIONS

Bluetooth communication
3/4G modem
Online analytics platform
Three-colors text matrix

Technical features

Displayable speeds	from 5 to 199 km/h
Detection speeds	from 5 to 250 km/h
Numbers size	345 x 520 mm (H x L)
Text matrix size	160 x 520 mm (H x L)/832 leds
Unit size	775 x 665 x 140 mm (H x L x P)
Weight	11.4 kg (without battery)
Protection level	IP65
Mounting support	hooks on the back of the unit + mast support
Operating Temperature	from -40 °C to +65 °C
Power supply	12 V DC by rechargeable battery 12V/24 Ah or 220 V (grid or street lighting) or solar kit
Consumption	0.2 VA
Battery life	depends on power supply
Frequency	K-band: 24.125 GHz
Transmitting power	< 5mW
Communication interface	USB (options : Bluetooth or GPRS)
Memory size	540 000 measures
Software
– Operating system	Windows 10 or later, minimum 512 MB RAM
– Disk space	50 MB
Detection distance	> 200 m
